ADT-6943A1 16-Axis RTEX BUS Motion Boards TR

ADT-6943A1 16-Axis RTEX BUS Motion Boards Quick Details Place of Origin: Guangdong China (Mainland) Brand Name: ADTECH Model Number: ADT-6943A1 Axis: 16 Min.Order Quantity: 1 Set/Sets Supply Ability: 300 Set/Sets per Week   Packaging & Delivery Packaging Detail: carton Delivery Detail: 5-8 working days after received the payment.
  • item no.:

    ADT-6943A1
  • lead time:

    5-8 days
  • product orgin:

    Guangdong China (Mainland)
  • shipping port:

    SHENZHEN
  • payment:

    L/C,T/T
  • product details

ADT-6943A1 16-Axis RTEX BUS Motion Boards

Specifications

1)RTEX BUS motion control card for welding machine
2)Supports any parameter of axis servo
3)independent control
4)ISO2008,CE

ADT-6943A1 16-Axis RTEX BUS motion control card for welding machine description:

16 axes RTEX motion control card, applies standard Ethernet 100BASE and supports 100Mbit of bandwidth, which makes this card supporting high-speed throughput of data transmission. Its hardwarenetwork protocol function makes it can communicate in real time, and its modular design makes its solution much easier. Reading the information of terminal module freely and setting its parameter realize the card’s integration control.



ADT-6943A1 16-Axis RTEX BUS motion control card function:

  • Base on RTEX BUS, 16 axes;
  • Random 2-6 axes linear interpolation;
  • Supports the parameter’s reading and inputting of any axis of servo;
  • Supports the alarm’s reading and clear of any axis of servo;
  • Supports position, speed and torque control modes, supports hybrid control mode;
  • Linear acceleration/deceleration;
  • Read logic position, real position, driving speed and other parameters in real time during motion;
  • Supports full-closed loop control mode; (it needs to match with Panasonic A5N series of servo)
  • 16 axes can run or stop simultaneously, its hardware has emergency stop function;
  • 16 axes servo, step and I/O control, each axis can control independently;
  • Indicator prompt function;
  • Bus module and running module are highly integrated; customers can call motion control AP to realize the control though the customers have no knowledge of hardware.



ADT-6943A1 16-Axis RTEX BUS motion control card parameter:

Items

Description

Connection mode

Loop

Physical layer

100BASE-TX (IEEE 802.3)

Transmission rate

100 [Mbps]

Nodes

Max 32

Communication cycle

0.5ms

Communication cable

5e Shielding twisted pair cable should be 5e or above 5e under standard TIA/EIA-568

Length of the cable

Max length within nodes:100[m]( for reference)
Max length:200[m]( for reference)



ADT-6943A1 16-Axis RTEX BUS motion control card application:

  • Carving machine
  • Cutter
  • Laser carving
  • Laser cutting
  • Graphic plotter
  • Tapping machine
  • Dispensing machine
  • Welding machine
  • Drilling machine
  • Punch machine
  • Automatic detection of electronic fitting
  • Automatic detection of press
  • Cutting and welding of semiconductor
  • All kinds of NC cutting
  • Industrial robot
  • Measure of space coordinates
  • Biological and medical auto-sampling and processing equipment

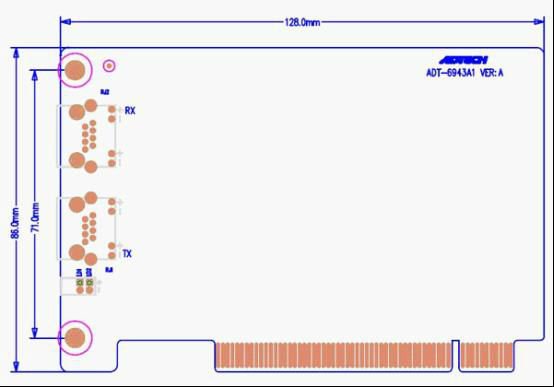

ADT-6943A1 16-Axis RTEX BUS motion control card size:

ADT-6943A1 16-Axis RTEX BUS Motion Boards







ADT-6943A

ADT-6943A1 16-Axis RTEX BUS Motion Boards
