6 axis CNC spring controller ADTECH TR

6 axis CNC spring controller ADTECH TR

6 axis CNC spring controller ADTECH Quick Details Place of Origin: Guangdong China (Mainland) Brand Name: ADTECH Model Number: ADT-CNC820 Condition: New screen: 15inch display brand: ADTECH original: shenzhen, china model: CNC820 Packaging & Delivery Packaging Detail: CTN. Delivery Detail: Within 3-5days delivery goods after received payment   Min.Order Quantity: 1 Set/Sets Supply Ability: 100 Set/Sets per Week
  • item no.:

    ADT-CNC820
  • lead time:

    3-5days
  • product orgin:

    Guangdong China (Mainland)
  • shipping port:

    Shenzhen
  • payment:

    T/T
  • product details

6 axis CNC spring controller ADTECH

Specifications

6 axis CNC spring controller
4-6 servo control
Supports 8 groups of probe cylinder
Supports U disk function

ADT-CNC820 4-6 axis compression spring  CNC  controller;

15 inch color LCD display;4-6 servo control;Supports 8 groups of probe cylinder; Support wire frame tangled lines, break the alarm detection and wire frame accelerated output function.

Product feature

  • 15 inch color LCD display,resolution:640*480
  • Supports U disk function , Convenient system update
  • Supports USB and RS232 communication function, connect with computer conveniently
  • Adopt ARM9 handler , high efficiency
  • 4-6axis servo control
  • Supports 8 groups of probe cylinders
  • Handwheel processing and test processing function
  • Optional hand-held boxes to facilitate the transfer machine
  • Rich in safety inspection function
  • Visible, simple and easy programming

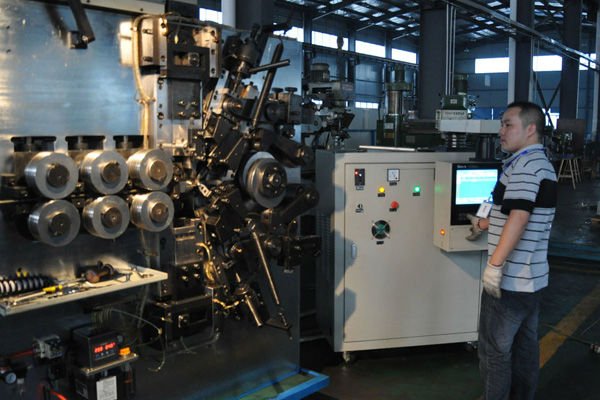

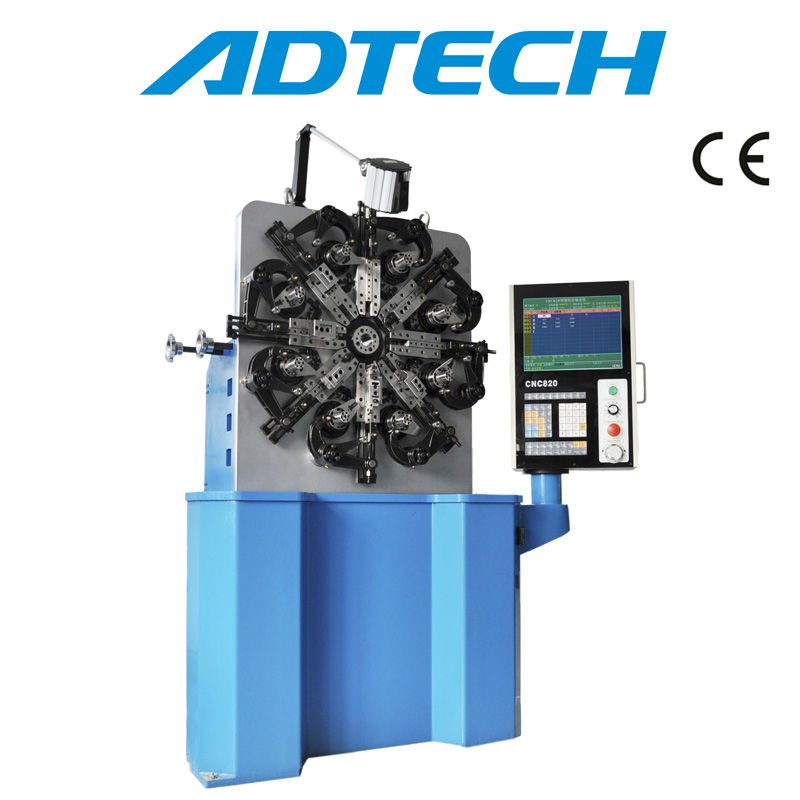

CNC820 CNC Spring Making Controller used on Universal Spring Machine

6 axis CNC spring controller ADTECH



CNC820 CNC Spring Making Controller Function:

  • Simple and visual form programming is adopted, Chinese and English display is optional;
  • Data could be entered after having moved all shafts to the destination position manually, or be edited directly for the spring programming;
  • On-line programming function, can program without stopping machine while processing;
  • Cam, wire feeding, rotation core are worked at the same time. The precision of wire feeding is ±0.01mm, the cam and wring angle axes can be accurate as ±0.1°C. Every rotation shaft has independent functions of zero returning;
  • Support wire frame tangled lines, break the alarm detection and wire frame accelerated output function;
  • Support as many as 8 groups of probes and cylinders operating, high speed probe testing ensures the accuracy of the springs;
  • Conditional transfer and absolute transfer are supported, which improve the flexibility of programming and make it easy to detect the defects;
  • Support revolving programming function;
  • The system provides several groups of system parameters for conveniently maintaining the system and changing the parameters;
  • The code verification function could prevent others from changing the system parameters without authorization. The program can save as many as 1000 files.

Relative Products:

6 axis CNC spring controller ADTECH 6 axis CNC spring controller ADTECH

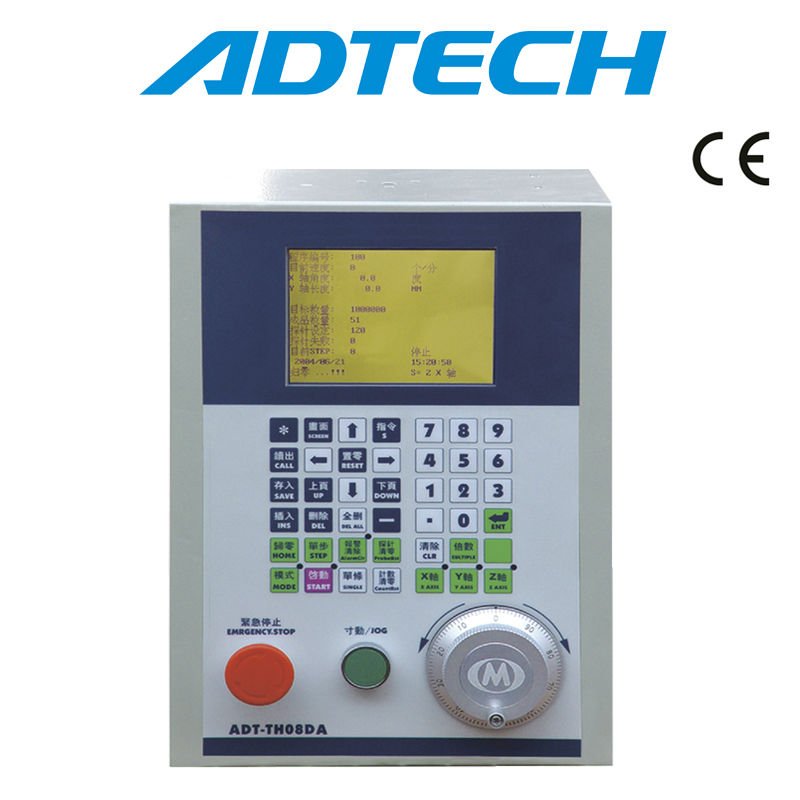

ADT-TH08DA 2~3 Axes CNC Spring Making Controller

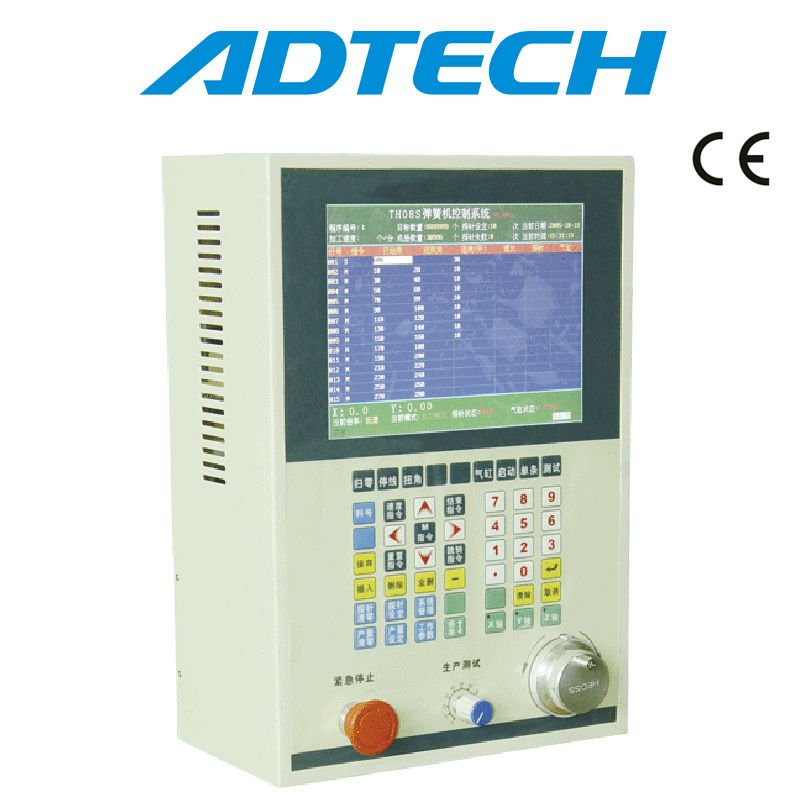

ADT-TH08SMV CNC Spring Controller





Factory:

6 axis CNC spring controller ADTECH





6 axis CNC spring controller ADTECH



6 axis CNC spring controller ADTECH
